# MySQL error log(PLC)

{% hint style="info" %}
Rsyslog : MySQL Error 로그와 Slow-Query 취합을 위한 설정
{% endhint %}

### 1. rsyslog conf 설정 <a href="#id-1" id="id-1"></a>

1-1. 설정

```bash
vi /etc/rsyslog.d/80-mysql.conf
```

<pre><code><strong>#variables required for non-syslog log file forwarding – mysql error
</strong>#edit on your location

input(type=”imfile”
File=”/var/log/mysqld.log”
Tag=”mysqld-errors”
Severity=”error”
Facility=”local7″)

input(type=”imfile”
File=”/var/log/mysql-slow.log”
Tag=”mysql-slow”
Severity=”notice”
Facility=”local7″)

###### Creates a template for each log file in the Logentries UI
### logic to apply the relevant templates to the different log files

if $programname == ‘mysqld-errors’ then /var/log/plura/ceelog-127.0.0.1.log;CEETemplate
:programname, isequal, “mysqld-errors” ~

if $programname == ‘mysql-slow’ then /var/log/plura/ceelog-127.0.0.1.log;CEETemplate
:programname, isequal, “mysql-slow” ~
</code></pre>

1-2. rsyslog 데몬 재시작

```bash
systemctl restart rsyslog
```

1-3. PLURA V5 repo 에서 다운로드 받기

```bash
wget https://repo.plura.io/v5/module/rsyslog/80-mysql.conf
curl https://repo.plura.io/v5/module/rsyslog/80-mysql.conf -o /etc/rsyslog.d/80-mysql.conf
```

### 2. MySQL – SLOW QUERY 설정 <a href="#id-2" id="id-2"></a>

2-1. 설정

```bash
vi /etc/my.cnf

[mysqld]
slow_query_log = 1
slow_query_log_file = /var/log/mysql-slow.log
long_query_time = 3
```

2-2. 로그 파일 생성 및 권한 설정

<pre class="language-bash"><code class="lang-bash"><strong>touch /var/log/mysql-slow.log
</strong>chown mysql.mysql /var/log/mysql-slow.log
</code></pre>

2-3. 권한 확인

```bash
ls -aZ /var/log/mysql*
```

<figure><img src="https://qubitsec.github.io/docs/images/Ins_G/rsys_mysql/1.png" alt="" width="563"><figcaption></figcaption></figure>

2-4. mysql 데몬 재시작

```bash
systemctl restart mysqld
```

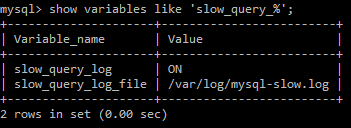

2-5. 활성화 확인

```bash
mysql> show variables like ‘slow_query_%’;
```

<figure><img src="https://qubitsec.github.io/docs/images/Ins_G/rsys_mysql/2.png" alt="" width="563"><figcaption></figcaption></figure>

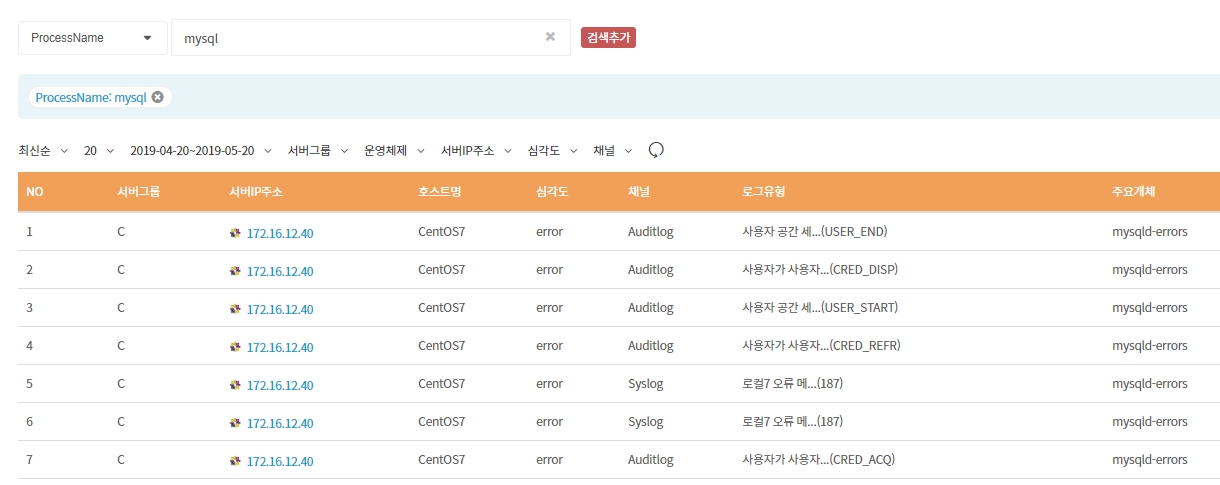

### 3. 로그 확인 <a href="#id-3" id="id-3"></a>

* Error 또는 Slow Query 발생 후 호스트 로그에서 MySQL 관련 로그를 확인
* 로그 예시 : [전체로그 > 호스트](https://docs.plura.io/ko/function/common/flog/host)

<figure><img src="https://qubitsec.github.io/docs/images/Ins_G/rsys_mysql/3.png" alt="" width="563"><figcaption></figcaption></figure>

### 참고 사이트 <a href="#id-4" id="id-4"></a>

> <https://www.rsyslog.com/doc/v8-stable/configuration/modules/imfile.html>
