# Tomcat Access 로깅 설정

{% hint style="info" %}
Tomcat Access 로그를 PLURA 로깅에 연동하는 방법
{% endhint %}

### 1. Tomcat `server.xml` 파일 수정 <a href="#id-1" id="id-1"></a>

* Tomcat의 `server.xml` 파일에서 PLURA 로그 형식을 적용하도록 로깅 설정을 수정합니다.

```
 # Change for PLURA log format

 <Valve className=”org.apache.catalina.valves.AccessLogValve” directory=”/var/log/plura”
 rotatable=”false”
 renameOnRotate=”false”
 prefix=”weblog” suffix=”.log”
 pattern=”{“Remote-addr”: “%a”, “X-forwarded-for”: “%{X-Forwarded-For}i”, “Request-date”: “%{dd/MM/yyyy:HH:mm:ss.SSS}t +0900”, “Method”: “%m”, “Request”: “%r”, “Host”: “%A”, “Uri”: “%U”, “Cookie”: “%{Cookie}i”, “Referer”: “%{Referer}i”, “User-Agent”: “%{User-Agent}i”, “Status”: “%s”, “Resp-Content-Length”: “%b”}” />
```

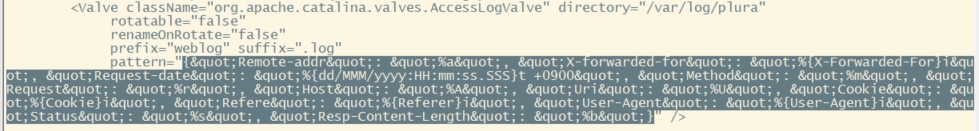

* `pattern` 내의 모든 쌍따옴표(`"`)는 `&quot;`로 변경해야 합니다.

<figure><img src="https://qubitsec.github.io/docs/images/Additianal/apache/1.png" alt=""><figcaption></figcaption></figure>

▶ Git source

> <https://github.com/QubitSecurity/ModPlura/tree/main/tomcat>

### 2. Tomcat `logging.properties` 파일 수정 <a href="#id-2" id="id-2"></a>

* Tomcat의 `logging.properties` 파일에서 다음과 같이 로깅 설정을 추가합니다.

```
 2localhost.org.apache.juli.AsyncFileHandler.directory = /var/log/plura
 2localhost.org.apache.juli.AsyncFileHandler.prefix = weblog.
 2localhost.org.apache.juli.FileHandler.suffix = log
```

### 3. Tomcat 재시작 <a href="#id-3" id="id-3"></a>

```bash
systemctl restart tomcat8
```

### 4. Tomcat을 PLURA 웹 시스템으로 인식시키기 <a href="#id-4" id="id-4"></a>

```bash
echo “ModPlura-tomcat” > /etc/modplura
```

```bash
echo “0.0.1” >> /etc/modplura
```

```bash
touch /etc/.modplura
```

### 5. Tomcat Access 로그 파일에 권한 부여 <a href="#id-5" id="id-5"></a>

```bash
touch /var/log/plura/weblog.log
```

```bash
chmod -R 766 /var/log/plura/weblog.log
```

```bash
chcon -t syslog_log_t /var/log/plura/weblog.log
```

### 내부 블로그 <a href="#id-6" id="id-6"></a>

> <https://docs.plura.io/ko/faq/siem/syslog/catalina.out>

### 참고 사이트 <a href="#id-7" id="id-7"></a>

> <https://tomcat.apache.org/tomcat-9.0-doc/config/valve.html>
>
> <https://m.blog.naver.com/solinsystem/221796167356>
>
> <https://gyrfalcon.tistory.com/entry/Apache-Tomcat-access-log-%EC%84%A4%EC%A0%95>
>
> <https://gyrfalcon.tistory.com/entry/Apache-Tomcat-access-log-%EC%84%A4%EC%A0%95>
>
> <https://stackoverflow.com/questions/39896222/how-to-include-time-format-with-millisecond-precision-in-apache-access-log>


---
